DC-DC Converter - Converter DC/DC, 1W, Uin 4.5....5.5V, Uout 5VDC, Iout 200mA, SIP7

Prod code: 40427
tba1e-datasheet.pdf PDF

TBA1-0511E
Price:  4.73 €
VAT:  1.14 €
Final price with tax:  5.87 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 1W
Input voltage 4.5...5.5V
Output voltage 5V DC
Output current 0.2A
Case SIP7
Body dimensions 19.5x9.5x6mm
Efficiency 79%
Operating temperature -40...85°C
Switching frequency 200kHz
Protection short circuit protection SCP
Insulation voltage 1.5kV
Manufacturer series TBA 1E
Number of outputs 1

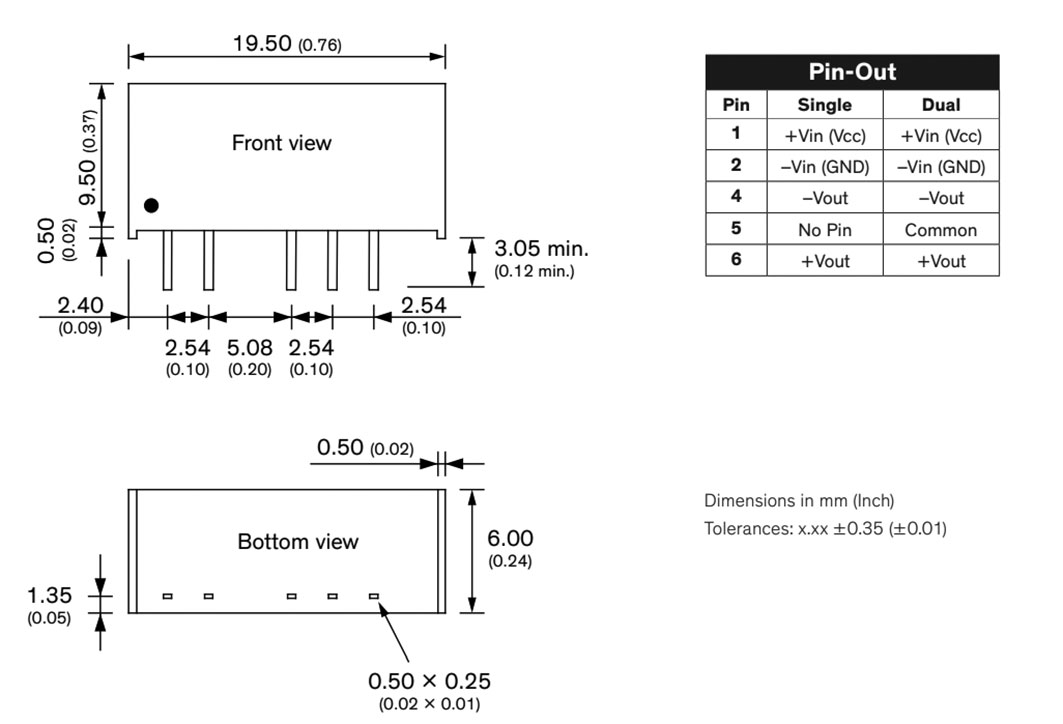

Dimensions  VIEW

Availability: With order
