Converter DC/DC, 30W, Uin 18....72V, Uout 12VDC, Iout 2.5A, 0.25kg - 38.15 EUR : acdcshop.gr


DC-DC Converter - Converter DC/DC, 30W, Uin 18....72V, Uout 12VDC, Iout 2.5A, 0.25kg	Κωδικός: 32049
PDF	RSD-30L-12

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 30W, Uin 18....72V, Uout 12VDC, Iout 2.5A, 0.25kg

Τιμή χωρίς ΦΠΑ:	30.77 €
Αξία ΦΠΑ:	7.38 €
Τελική με ΦΠΑ:	38.15 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Type of converter	DC/DC
Power	30W
Input voltage	18...72V
Output voltage	12V DC
Output current	2.5A
Kind of case	RSD-30
Body dimensions	113 x 60 x 25mm
Weight	0.25kg
Efficiency	90%
Operating temperature	40...70°C
Protection	overload, against reverse polarity, overheating, voltage growth, short-circuit
Insulation voltage	4kV DC
Power supply/converter features	rated parameters obtained at full load
Mounting	for building in
Series	RSD-30
Number of outputs	1
Application	railway application

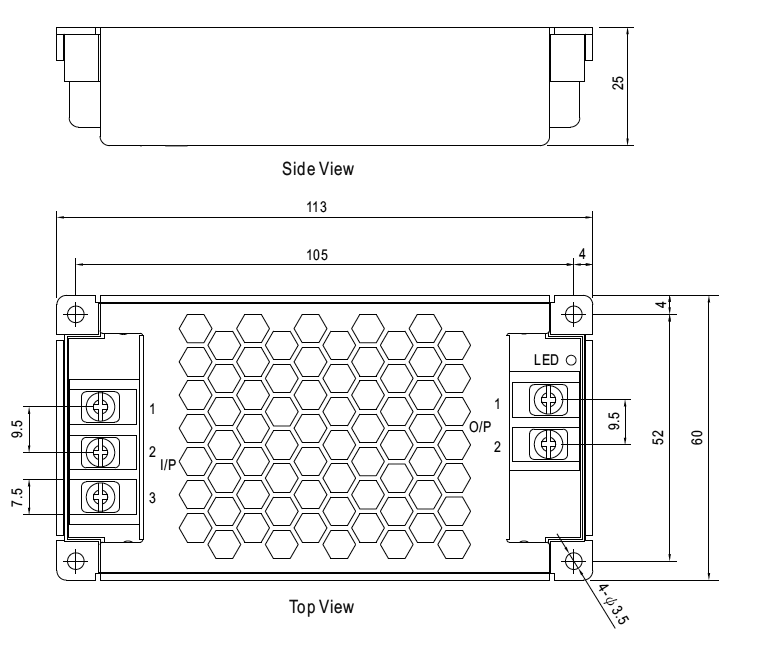

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
