Specifications |
| Manufacturer |
MEAN WELL |
| Pwr sup. unit type |
buffer |
| Kind of power supply |
modular |
| Power |
151.55W |
| Output voltage |
27.6V DC |
| Output voltage 2 |
27.1V DC |
| Output current |
5A |
| Output current 2 |
0.5A |
| Supply voltage |
124...370V DC, 88...264V AC |
| Weight |
880g |
| Electrical connection |
terminal block |
| Protection |
battery low protection, overload, voltage growth, short-circuit |
| Mounting |
for building in |
| Number of outputs |
2 |
| Operating temperature |
10...60°C |
| Body dimensions |
199 x 110 x 50mm |
| Power supply/converter features |
rated parameters obtained at full load |
| Series |
AD-155 |
| Efficiency |
84% |
| Case type |
906B |
| Additional functions |
UPS |
| Associated items |
DRL-02, DRP-03A |

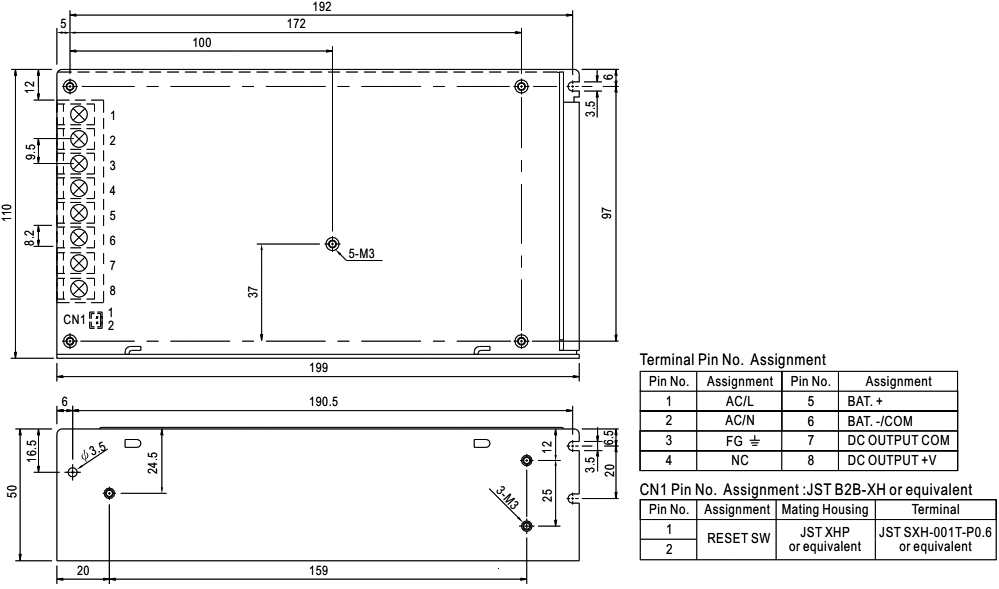

| Dimensions |
 VIEW |
| |
|
