Pwr sup.unit pulse, 120W, 12VDC, 10A, 88....264VAC, 124....370VDC, 670g - 70.59 EUR : acdcshop.gr


Din rail power supply - Pwr sup.unit pulse, 120W, 12VDC, 10A, 88....264VAC, 124....370VDC, 670g	Prod code: 16021
PDF	SDR-120-12

Click to enlarge Pwr sup.unit pulse, 120W, 12VDC, 10A, 88....264VAC, 124....370VDC, 670g

Price:	56.92 €
VAT:	13.66 €
Final price with tax:	70.59 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	120W
Output voltage	12V DC, 12...14V DC
Output current	10A
Supply voltage	88...264V AC, 124...370V DC
Electrical connection	terminal block
Mounting	DIN
Body dimensions	40 x 125.2 x 113.5mm
Weight	670g
Number of outputs	1
Operating temperature	25...70°C
Protection	overload, overheating, overvoltage, short-circuit
Efficiency	89%
Additional functions	active PFC, output voltage correctness indication (NO contact)
Power supply/converter features	rated parameters obtained at full load
Series	SDR-120
Case type	992A

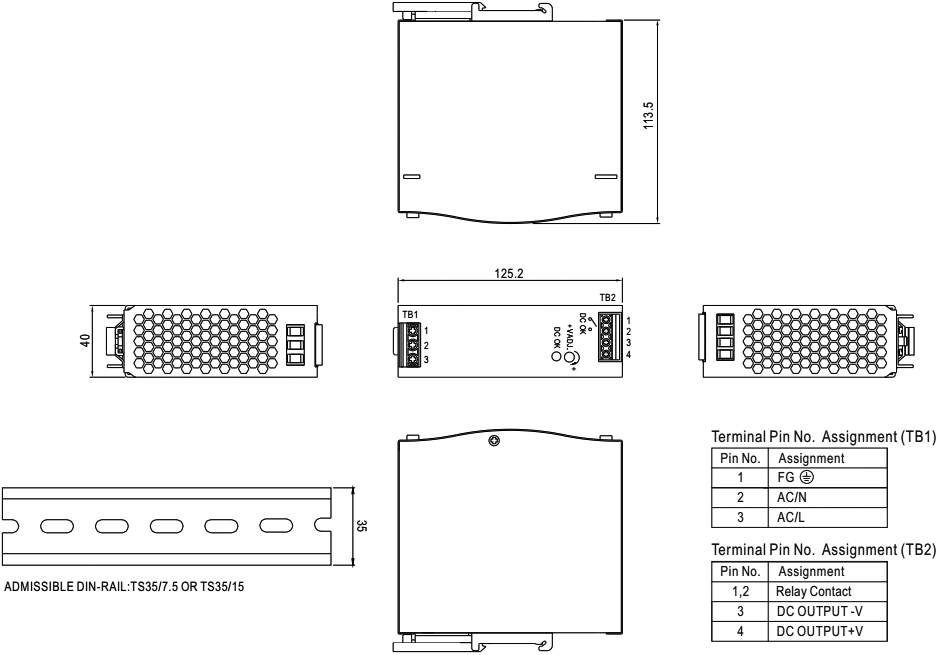

Dimensions	VIEW

Availability: With order
