Pwr sup.unit pulse, 120W, 24VDC, 5A, 180....550VAC, 254....780VDC, 650g - 79.40 EUR : acdcshop.gr


Τροφοδοτικό DIN - Pwr sup.unit pulse, 120W, 24VDC, 5A, 180....550VAC, 254....780VDC, 650g	Κωδικός: 16036
PDF	WDR-120-24

Κάντε Κλικ για Μεγέθυνση Pwr sup.unit pulse, 120W, 24VDC, 5A, 180....550VAC, 254....780VDC, 650g

Τιμή χωρίς ΦΠΑ:	64.04 €
Αξία ΦΠΑ:	15.37 €
Τελική με ΦΠΑ:	79.40 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	120W
Output voltage	24V DC, 24...29V DC
Output current	5A
Supply voltage	180...550V AC, 254...780V DC
Electrical connection	terminal block
Mounting	DIN
Body dimensions	40 x 125.2 x 113.5mm
Weight	650g
Number of outputs	1
Operating temperature	25...70°C
Protection	overload, overheating, overvoltage, short-circuit
Efficiency	91%
Power supply/converter features	rated parameters obtained at full load
Series	WDR-120
Case type	992B

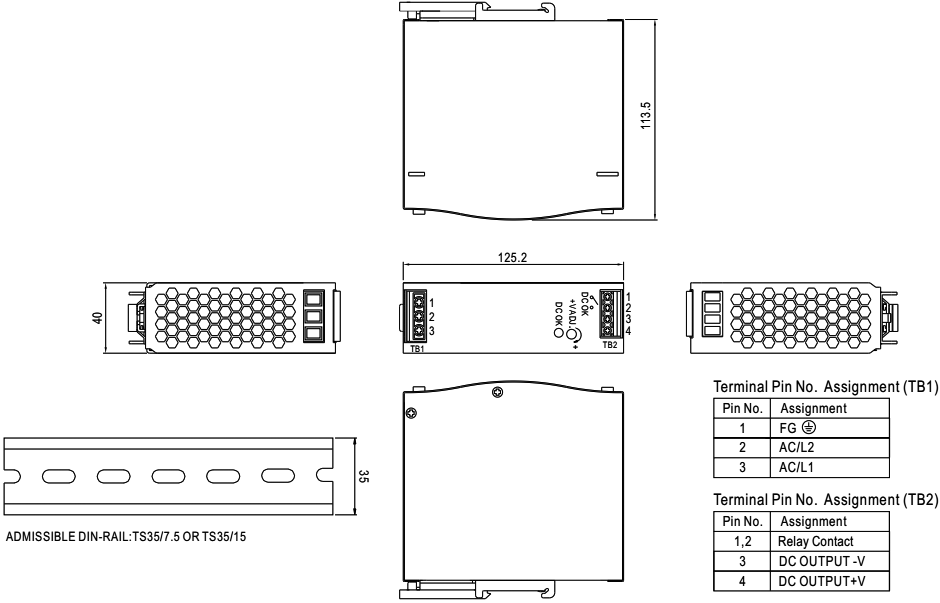

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
