Pwr sup.unit pulse, 15.12W, 24VDC, 0.63A, 85....264VAC, 120....370VDC


power supplies - Pwr sup.unit pulse, 15.12W, 24VDC, 0.63A, 85....264VAC, 120....370VDC	Prod code: 16121
PDF	PM-15-24

Click to enlarge Pwr sup.unit pulse, 15.12W, 24VDC, 0.63A, 85....264VAC, 120....370VDC <s

Price:	15.74 €
VAT:	3.78 €
Final price with tax:	19.51 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	15.12W
Output voltage	24V DC
Output current	0.63A
Supply voltage	85...264V AC, 120...370V DC
Weight	140g
Electrical connection	THT
Protection	overload, voltage growth, short-circuit
Mounting	PCB
Number of outputs	1
Operating temperature	20...70°C
Body dimensions	75 x 53 x 22.7mm
Series	PM-15
Efficiency	81%
Case type	950A

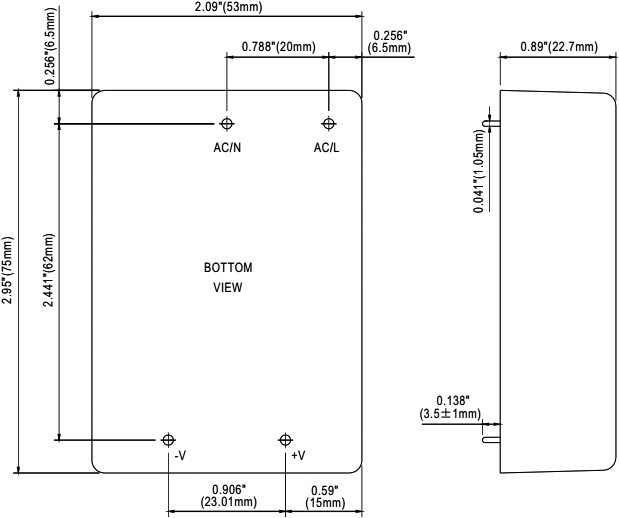

Dimensions	VIEW

Power supply/converter features: no load power consumption <0,5W rated parameters obtained at full load

Availability: With order
