Pwr sup.unit pulse, 15W, 12VDC, 1.25A, 85....264VAC, 120....370VDC, 59g - 11.77 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 15W, 12VDC, 1.25A, 85....264VAC, 120....370VDC, 59g	Prod code: 16099
PDF	IRM-15-12

Click to enlarge Pwr sup.unit pulse, 15W, 12VDC, 1.25A, 85....264VAC, 120....370VDC, 59g

Price:	9.49 €
VAT:	2.28 €
Final price with tax:	11.77 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	15W
Output voltage	12V DC
Output current	1.25A
Supply voltage	120...370V DC, 85...264V AC
Weight	59g
Electrical connection	THT
Protection	overload, voltage growth, short-circuit
Mounting	PCB
Number of outputs	1
Operating temperature	30...70°C
Body dimensions	52.4 x 27.2 x 24mm
Series	IRM
Efficiency	82%

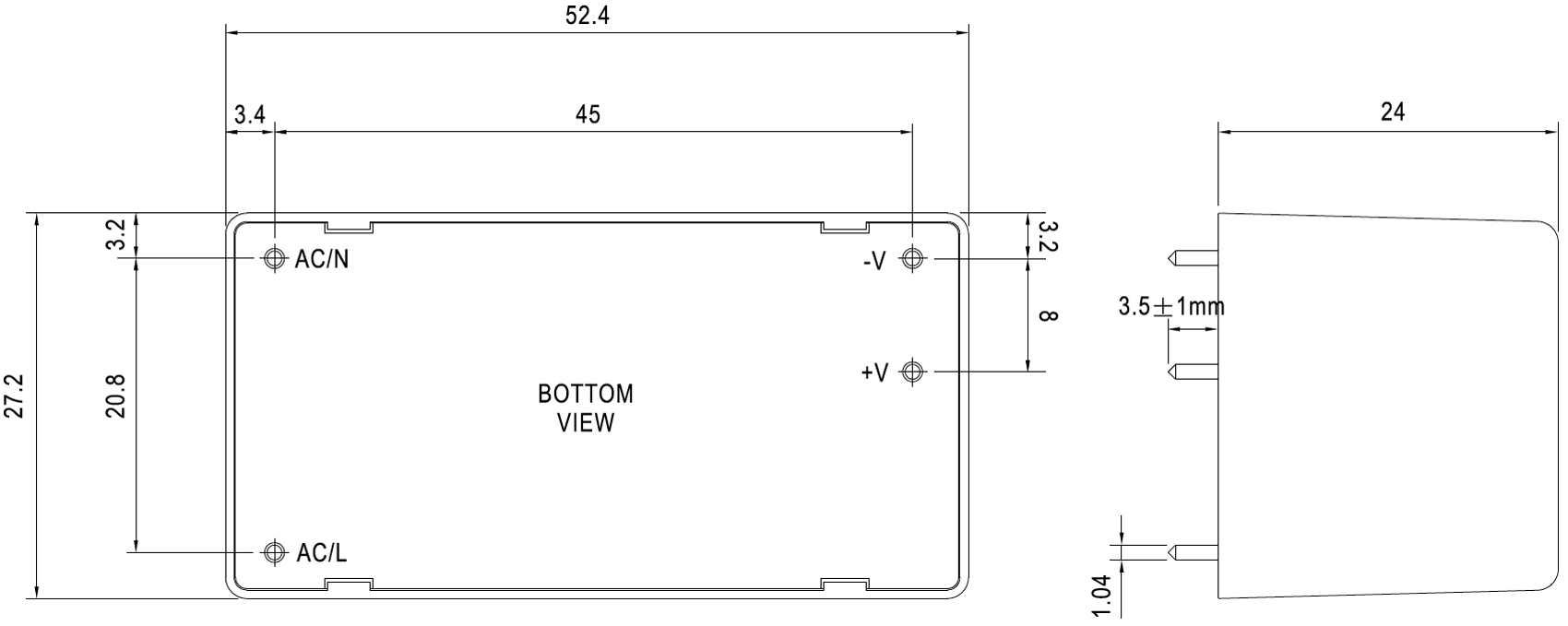

Dimensions	VIEW

Power supply/converter features: no load power consumption <0,1W rated parameters obtained at full load

Availability: With order
