Pwr sup.unit pulse, 240W, 48VDC, 5A, 180....550VAC, 254....780VDC - 153.15 EUR : acdcshop.gr


Τροφοδοτικό DIN - Pwr sup.unit pulse, 240W, 48VDC, 5A, 180....550VAC, 254....780VDC	Κωδικός: 16039
PDF	WDR-240-48

Κάντε Κλικ για Μεγέθυνση Pwr sup.unit pulse, 240W, 48VDC, 5A, 180....550VAC, 254....780VDC

Τιμή χωρίς ΦΠΑ:	123.51 €
Αξία ΦΠΑ:	29.64 €
Τελική με ΦΠΑ:	153.15 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	240W
Output voltage	48V DC, 48...55V DC
Output current	5A
Supply voltage	180...550V AC, 254...780V DC
Electrical connection	terminal block, screw terminals
Mounting	DIN
Body dimensions	63 x 125.2 x 113.5mm
Weight	1.06kg
Number of outputs	1
Operating temperature	30...70°C
Protection	overload, overheating, overvoltage, short-circuit
Efficiency	91%
Additional functions	active PFC
Power supply/converter features	rated parameters obtained at full load
Series	WDR-240
Case type	979B

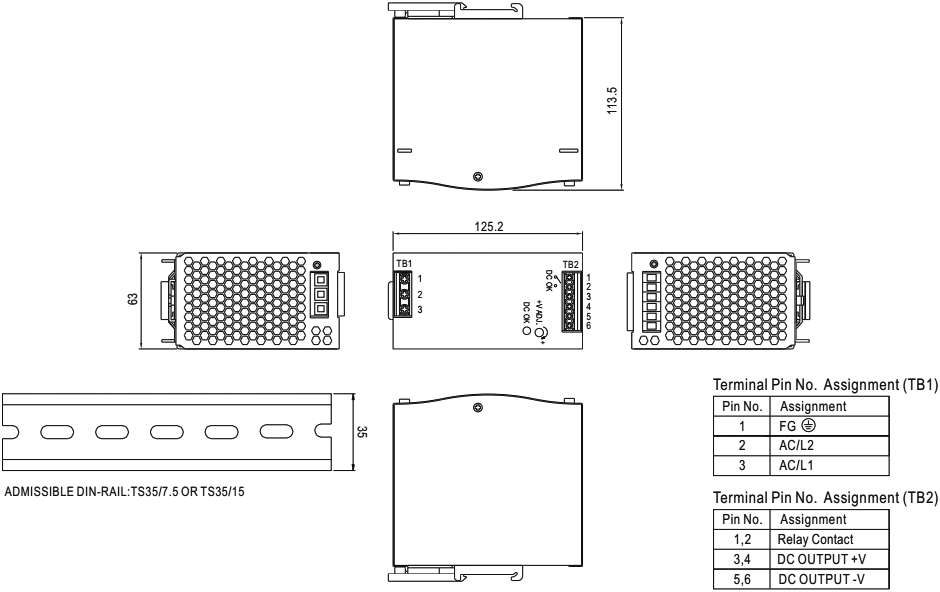

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
