Pwr sup.unit pulse, 480W, 48VDC, 10A, 180....550VAC, 254....780VDC - 178.87 EUR : acdcshop.gr


Τροφοδοτικό DIN - Pwr sup.unit pulse, 480W, 48VDC, 10A, 180....550VAC, 254....780VDC	Κωδικός: 16041
PDF	WDR-480-48

Κάντε Κλικ για Μεγέθυνση Pwr sup.unit pulse, 480W, 48VDC, 10A, 180....550VAC, 254....780VDC

Τιμή χωρίς ΦΠΑ:	144.25 €
Αξία ΦΠΑ:	34.62 €
Τελική με ΦΠΑ:	178.87 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	480W
Output voltage	48V DC, 48...55V DC
Output current	10A
Supply voltage	180...550V AC, 254...780V DC
Electrical connection	terminal block
Mounting	DIN
Body dimensions	85.5 x 125.2 x 128.5mm
Weight	1.7kg
Number of outputs	1
Operating temperature	30...70°C
Protection	overload, overheating, overvoltage, short-circuit
Efficiency	93%
Additional functions	active PFC, output voltage correctness indication (NO contact)
Power supply/converter features	rated parameters obtained at full load
Series	WDR-480
Case type	984B

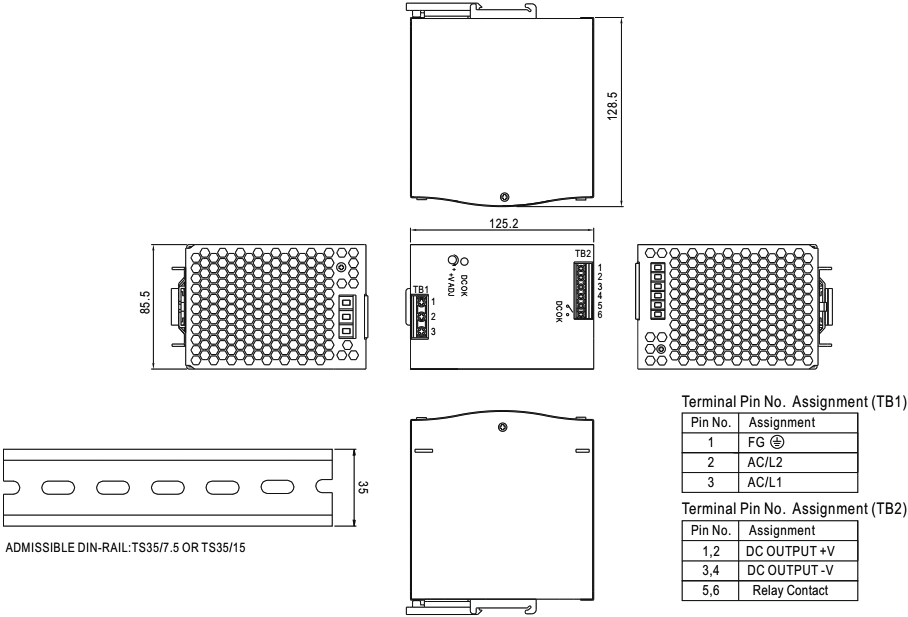

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
