Pwr sup.unit pulse, 75.8W, 5VDC, 24VDC, 12VDC, 7A, 1.5A, 0.4A, 650g - 63.94 EUR : acdcshop.gr


Τροφοδοτικό - Pwr sup.unit pulse, 75.8W, 5VDC, 24VDC, 12VDC, 7A, 1.5A, 0.4A, 650g	Κωδικός: 17280
PDF	TP-75-D

Κάντε Κλικ για Μεγέθυνση Pwr sup.unit pulse, 75.8W, 5VDC, 24VDC, 12VDC, 7A, 1.5A, 0.4A, 650g

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	75.8W
Output voltage	5V DC
Output voltage 2	24V DC
Output voltage 3	12V DC
Output current	7 (1.5...10)A
Output current 2	1.5 (0.2...2.5)A
Output current 3	0.4 (0...0.6)A
Supply voltage	90...264V AC, 127...370V DC
Weight	650g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	3
Operating temperature	10...60°C
Body dimensions	179 x 99 x 33mm
Power supply/converter features	rated parameters obtained at full load
Series	TP-75
Efficiency	70%
Case type	920A
Additional functions	active PFC
Associated items	DRL-02, DRP-02A

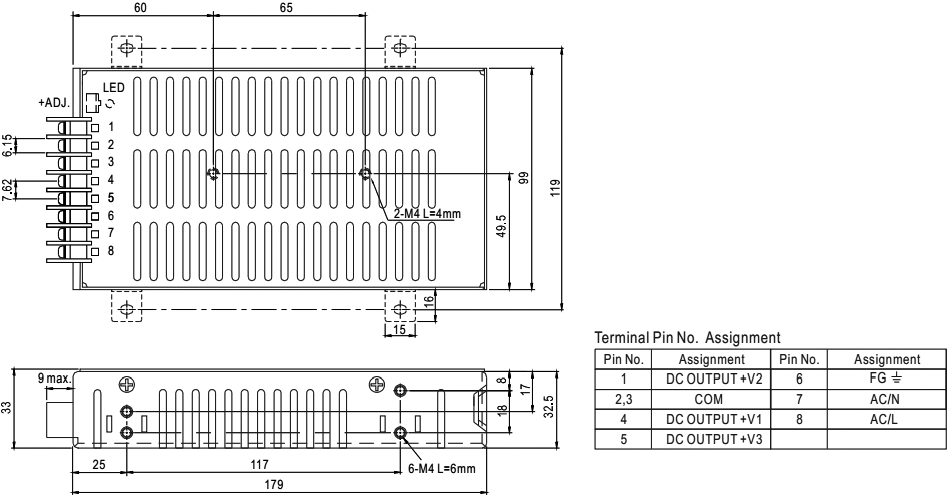

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
