Relays PCB - Reed relay SPST-NO, 1,25A, 12VDC, PCB mounting	Prod code: 1543
PDF	DIP12-1A72-12D

Click to enlarge Reed relay SPST-NO, 1,25A, 12VDC, PCB mounting

Reed relay SPST-NO, 1,25A, 12VDC, PCB mounting

Price:	3.46 €
VAT:	0.83 €
Final price with tax:	4.29 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	MEDER
Relay type	reed
Contacts configuration	SPST-NO
Rated coil voltage	12V DC
Contact current max.	1A
Switched voltage	max 200V DC, max 200V AC
Coil resistance	1kΩ
Coil power consumption	145mW
Mounting	PCB
Case	DIP14
Contact resistance	150mΩ
Coil voltage min.	8.4V DC
Coil voltage max.	16V DC
Operating temperature	20...70°C
Soldering temperature	260°C
Body dimensions	13.5 x 7 x 5.7mm
Relay series	DIP
Terminal pitch	2.54mm
Dimensions	VIEW

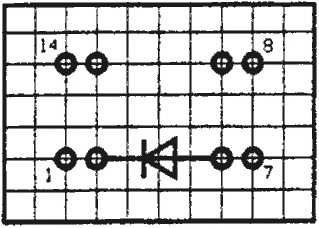

Schematic diagram	VIEW
Output configuration	VIEW

Availability: On stock
