Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/120VAC, 1A/24VDC	Prod code: 17596
PDF	AZ822-2C-12DSE

Click to enlarge Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/120VAC, 1A/24VDC

Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/120VAC, 1A/24VDC

Price:	1.53 €
VAT:	0.37 €
Final price with tax:	1.89 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	ZETTLER
Relay type	electromagnetic
Contacts configuration	DPDT
Rated coil voltage	12V DC
AC contacts rating	0.5 A / 120 VAC
DC contacts rating	1 A / 24 VDC
Contact current max.	2A
Switched voltage	max 250V AC, max 220V DC
Relay variant	miniature
Mounting	PCB
Coil resistance	960Ω
Coil voltage min.	8.4V DC
Coil voltage max.	30V DC
Operate time	5ms
Body dimensions	20 x 9.8 x 12mm
Release time	2ms
Coil power consumption	74mW
Sealing	IP64
Operating temperature	55...90°C
Weight	4.5g
Relay series	AZ822
Contact resistance	50mΩ
Terminal pitch	5mm

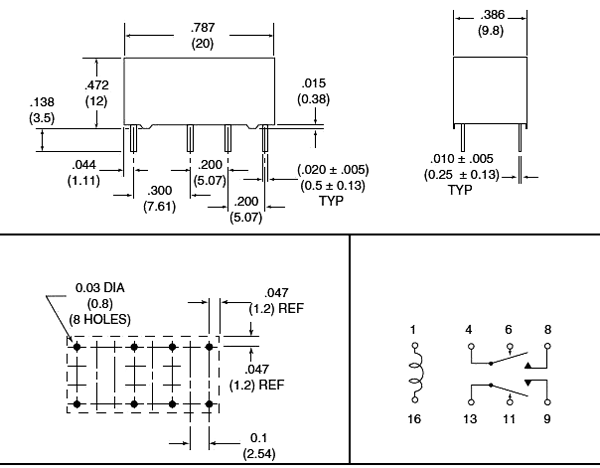

Dimensions	VIEW

Availability: On stock
