Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 1A/120VAC, 2A/24VDC, 2A

Prod code: 37784
GS-SH-212T PDF

GS-SH-212T
Price:  2.02 €
VAT:  0.48 €
Final price with tax:  2.50 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer GOODSKY
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating @R 1A / 120V AC
DC contacts rating @R 2A / 24V DC
Contact current max. 2A
Switched voltage max. 24V DC,   max. 120V AC
Relay variant signal,   subminiature
Mounting PCB
Coil resistance 720Ω
Coil voltage min. 9V DC
Operate time 8ms
Body dimensions 20.5x10x11.5mm
Coil power consumption 200mW
Mechanical durability 10000000 cycles
Operating temperature -30...80°C
Relay series GS
Contact resistance 100mΩ
Electrical life 100000 cycles
Switching capacity 48W,   120VA
Contact material silver alloy
Terminal pitch 5.08mm

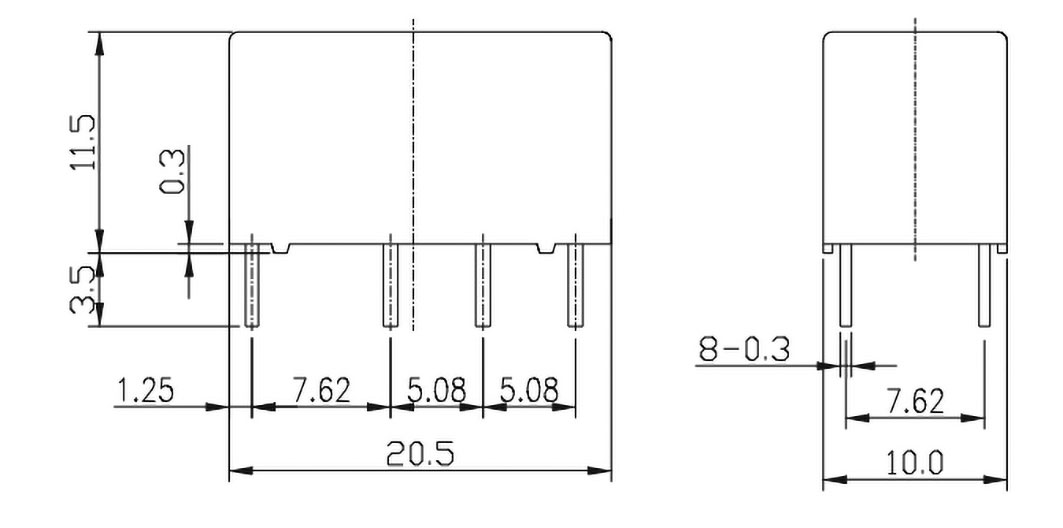

Dimensions  VIEW

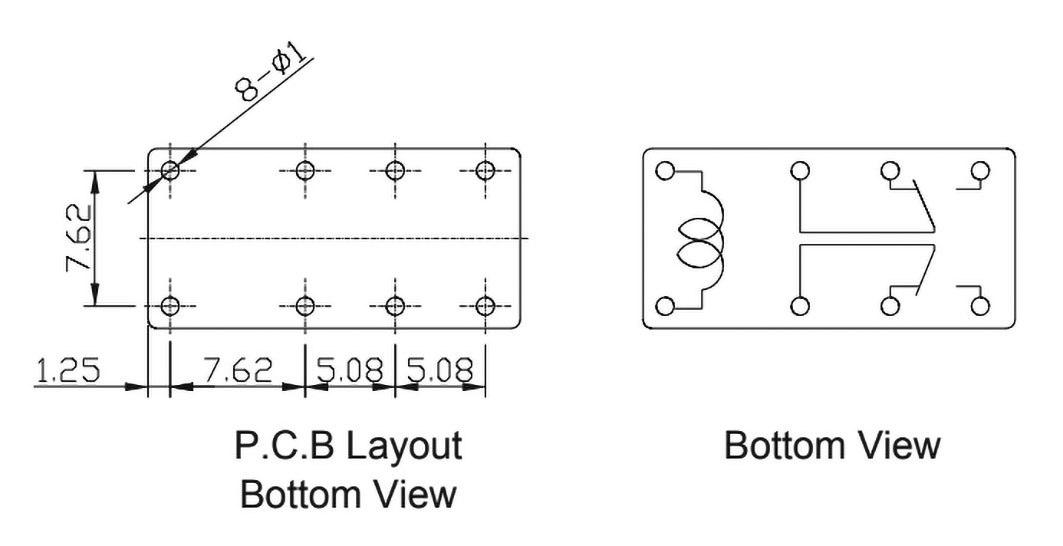

Output configuration  VIEW
Gross weight 5.2 g

Availability: On stock
