Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 10A/277VAC, 15A	Prod code: 35801
PDF	HF3FF/012-1HST

Click to enlarge Relay electromagnetic, SPST-NO, Ucoil 12VDC, 10A/277VAC, 15A

Relay electromagnetic, SPST-NO, Ucoil 12VDC, 10A/277VAC, 15A

Price:	0.67 €
VAT:	0.16 €
Final price with tax:	0.83 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	HONGFA RELAY
Type of relay	electromagnetic
Contacts configuration	SPST-NO
Rated coil voltage	12V DC
AC contacts rating @R	10A / 277V AC
DC contacts rating @R	10A / 28V DC
Contact current max.	15A
Switched voltage	max. 28V DC, max. 277V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	400Ω
Coil voltage min.	9V DC
Coil voltage max.	15.6V DC
Operate time	10ms
Body dimensions	19x15.5x15.2mm
Release time	5ms
Coil power consumption	360mW
Operating temperature	-40...70°C
Contact resistance	100mΩ
Contact material	AgSnO₂
Terminal pitch	2mm

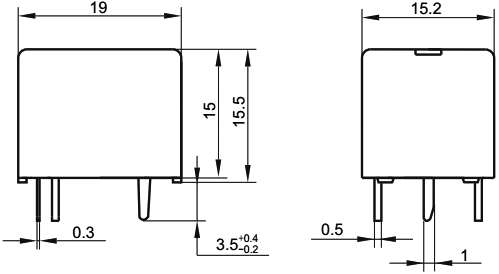

Dimensions	VIEW

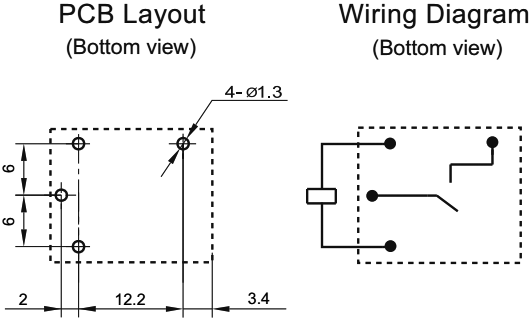

Output configuration	VIEW
Gross weight	7.5 g

Availability: With order
