Specifications |
| Manufacturer |
HONGFA RELAY |
| Relay type |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| AC contacts rating |
20 A / 250 VAC |
| DC contacts rating |
20 A / 24 VDC |
| Contact current max. |
20A |
| Switched voltage |
max 440V AC, max 300V DC |
| Relay variant |
miniature |
| Mounting |
PCB |
| Coil resistance |
360Ω |
| Coil voltage min. |
8.4V DC |
| Coil voltage max. |
18V DC |
| Operate time |
15ms |
| Body dimensions |
41 x 15.7 x 12.7mm |
| Release time |
8ms |
| Coil power consumption |
400mW |
| Operating temperature |
40...125°C |
| Contact resistance |
100mΩ |
| Contact material |
AgSnO2 |
| Terminal pitch |
5mm |

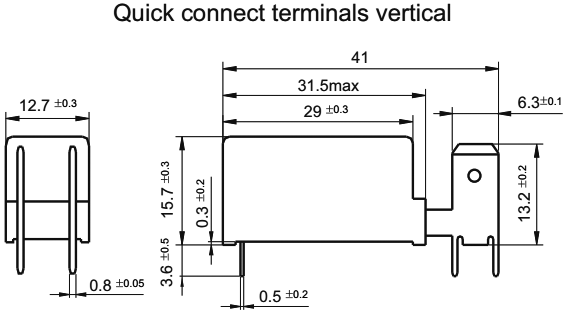

| Dimensions |
 VIEW |

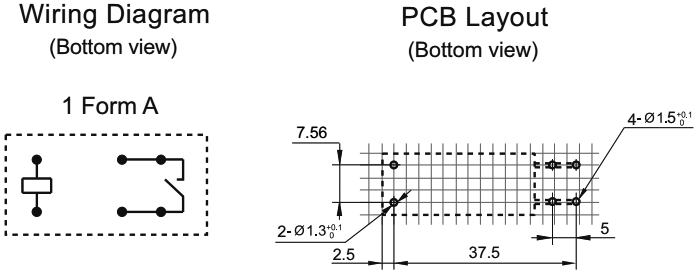

| Output configuration |
VIEW |
| |
|
