Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 30A, Ucoil min 9VDC

Prod code: 35995
T9AS1D22-12 PDF

T9AS1D22-12
Price:  5.50 €
VAT:  1.32 €
Final price with tax:  6.82 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Contact current max. 30A
Coil voltage min. 9V DC
Relay series T9A
Relay variant power
Operating temperature -55...85°C
Mounting PCB
Coil resistance 144Ω
Body dimensions 32.5x27.4x27.9mm
Switched voltage max. 28V DC,   max. 277V AC
Coil power consumption 1W
AC contacts rating @R 30A / 240V AC
Contact resistance 75mΩ
DC contacts rating @R 10A / 28V DC
Leads 6,35x0,8mm connectors,   for PCB
Contact material AgCdO
Mechanical durability 10000000 cycles

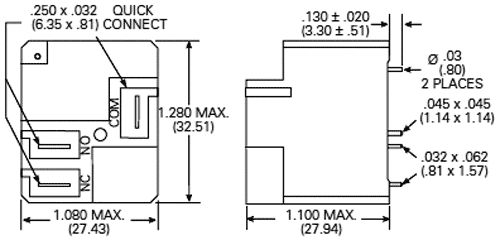

Dimensions  VIEW
Gross weight 29.4 g

Availability: On stock
