Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 5A/250VAC, 5A/28VDC

Prod code: 31999
RM32N3021851012 PDF

RM32N3021851012
Price:  2.08 €
VAT:  0.50 €
Final price with tax:  2.57 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 28V DC
Contact current max. 5A
Switched voltage max. 28V DC,
Relay variant miniature
Mounting PCB
Coil resistance 320Ω
Coil voltage min. 9V DC
Coil voltage max. 15.6V DC
Operate time 8ms
Body dimensions 18.8x10.6x15.3mm
Release time 5ms
Coil power consumption 200mW
IP rating IP64
Mechanical durability 100000000cycles
Operating temperature -40...70°C
Relay series RM32N
Contact resistance 100mΩ
Electrical life 100000cycles
Contact material AgSnO2
Terminal pitch 7.62mm

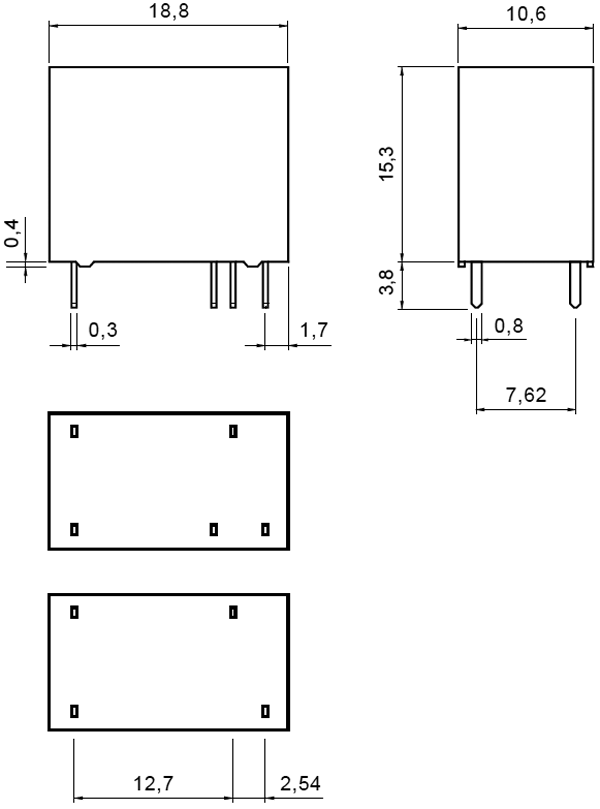

Dimensions  VIEW

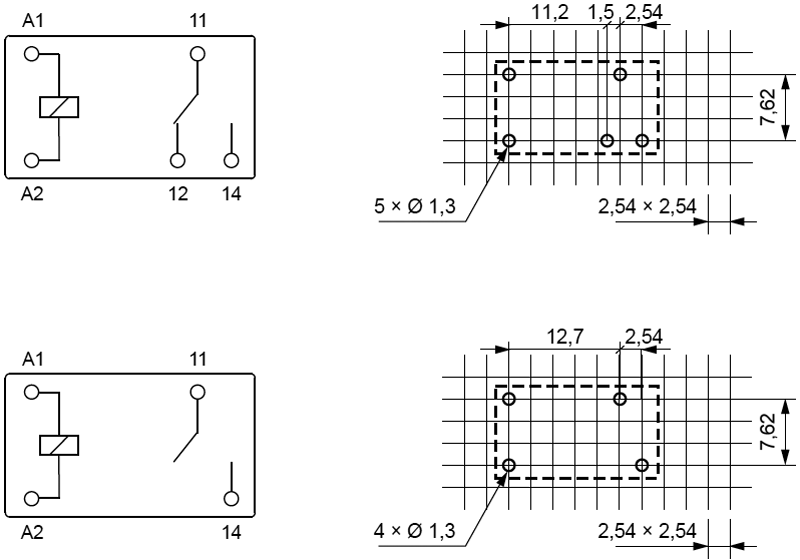

Leads  VIEW
Gross weight 5.425 g

Availability: On stock
