Relay electromagnetic, SPST-NO, Ucoil 18VDC, 8A, 8A/250VAC, PCB - 3.16 EUR : acdcshop.gr


Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 18VDC, 8A, 8A/250VAC, PCB	Prod code: 40625
PDF	RM96-3021-35-1018

Click to enlarge Relay electromagnetic, SPST-NO, Ucoil 18VDC, 8A, 8A/250VAC, PCB

Price:	2.55 €
VAT:	0.61 €
Final price with tax:	3.16 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	RELPOL
Type of relay	electromagnetic
Contacts configuration	SPST-NO
Rated coil voltage	18V DC
Contact current max.	8A
AC contacts rating @R(at resistive load)	8A / 250V AC
DC contacts rating @R(at resistive load)	8A / 24V DC
Switched voltage	max. 120V DC, max. 440V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	1.5kΩ
Coil voltage min.	12.6V DC
Coil voltage max.	44V DC
Operate time	10ms
Body dimensions	28x10x16.2mm
Release time	5ms
Coil power consumption	300mW
IP rating	IP67
Mechanical durability	20000000 cycles
Operating temperature	-40...80°C
Relay series	RM96
Contact resistance	100mΩ
Contact material	AgSnO2
Terminal pitch	5mm
Height	16.2mm
OEM number	852858
Number of pins	4

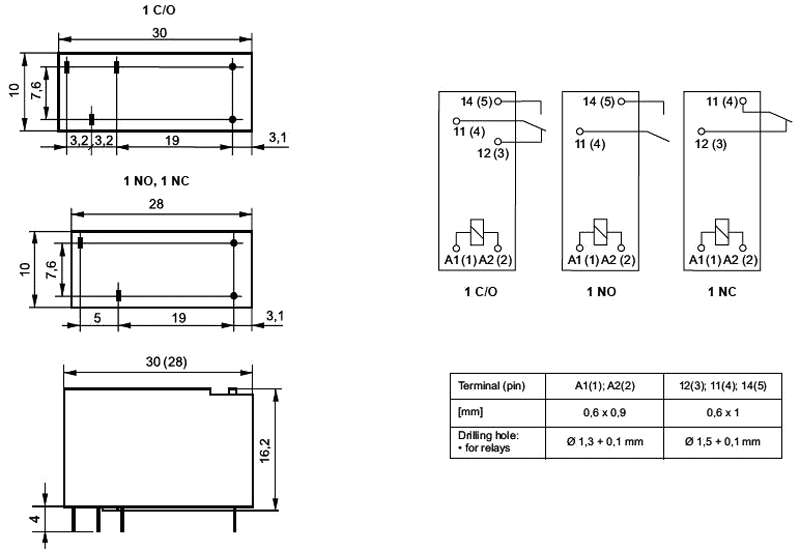

Dimensions	VIEW

Availability: On stock
