Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 5VDC, 16A/250VAC, PCB	Prod code: 39624
PDF	G2R-1A-E-5DC

Click to enlarge Relay electromagnetic, SPST-NO, Ucoil 5VDC, 16A/250VAC, PCB

Relay electromagnetic, SPST-NO, Ucoil 5VDC, 16A/250VAC, PCB

Price:	3.01 €
VAT:	0.72 €
Final price with tax:	3.73 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	OMRON OCB
Type of relay	electromagnetic
Contacts configuration	SPST-NO
Rated coil voltage	5V DC
AC contacts rating @R	16A / 250V AC
DC contacts rating @R	16A / 30V DC
Contact current max.	16A
Switched voltage	max. 125V DC, max. 380V AC
Relay variant	miniature, monostable
Mounting	PCB
Coil resistance	47Ω
Operate time	15ms
Body dimensions	29x13x25.5mm
Release time	5ms
Operating temperature	-40...70°C
Relay series	G2R
Contact resistance	30mΩ
Terminal pitch	3.5mm
Coil current	106mA
Related items	PODST-3
Enclosure description	standard seal
Leads	for PCB

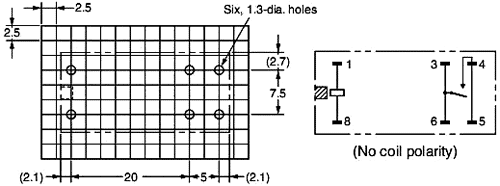

Output configuration	VIEW

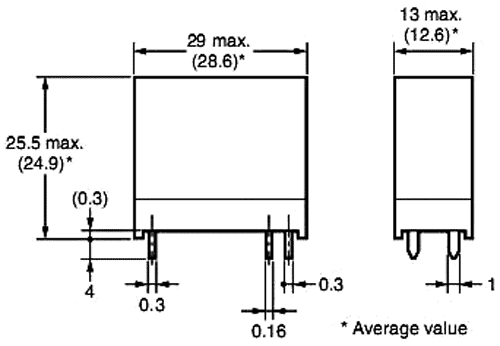

Dimensions	VIEW
Gross weight	15.9 g

Availability: On stock
