Relays PCB - Relay reed, SPST-NO, Ucoil 12VDC, 1.25A, max.200VDC, max.200VAC	Prod code: 30777
PDF	SIL12-1A72-71D

Click to enlarge Relay reed, SPST-NO, Ucoil 12VDC, 1.25A, max.200VDC, max.200VAC

Relay reed, SPST-NO, Ucoil 12VDC, 1.25A, max.200VDC, max.200VAC

Price:	3.44 €
VAT:	0.83 €
Final price with tax:	4.27 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEDER
Type of relay	reed
Contacts configuration	SPST-NO
Rated coil voltage	12V DC
Contact current max.	1.25A
Switched voltage	max. 200V AC,
Coil resistance	1kΩ
Coil power consumption	145mW
Mounting	PCB
Case	SIL
Contact resistance	150mΩ
Coil voltage min.	8.4V DC
Coil voltage max.	33V DC
Operating temperature	-20...70°C
Relay features	protection diode
Body dimensions	19.2x5.08x7.62mm
Relay series	SIL
Terminal pitch	5.08mm
Dimensions	VIEW

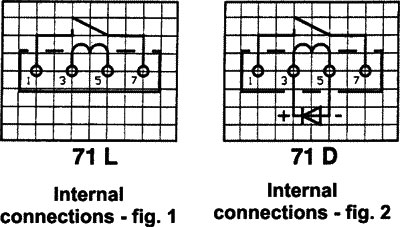

Schematic diagram	VIEW
Gross weight	1.567 g

Availability: With order
