Διακόπτης - ROCKER 2 position SPST ON OFF 16A/250VAC green IP65 50mΩ	Prod code: 14639
PDF	R13238B801G

Click to enlarge ROCKER 2 position SPST ON OFF 16A/250VAC green IP65 50mΩ

ROCKER 2 position SPST ON OFF 16A/250VAC green IP65 50mΩ

Price:	2.84 €
VAT:	0.68 €
Final price with tax:	3.52 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	SCI
Switch type	ROCKER
Stable positions number	2-position
Contacts configuration	SPST
Switching method	ON-OFF
DC contacts rating	25 A / 14 VDC
Key button colour	green
Sealing	IP65
Illumination	LED 12V DC
Max. contact resistance:	50mΩ
Body colour	black
Flammability rating	UL94V-2
Operating temperature	20...85°C
Leads	6.3x0.8mm connectors
Panel thickness	max 4.5mm
Mounting hole diameter	29.4 x 13.8mm
Number of positions	2
Button marking	blank
Backlight colour	green
Body dimensions	31.5 x 18.5 x 21.1mm
Dielectric strenght	1.5kV AC

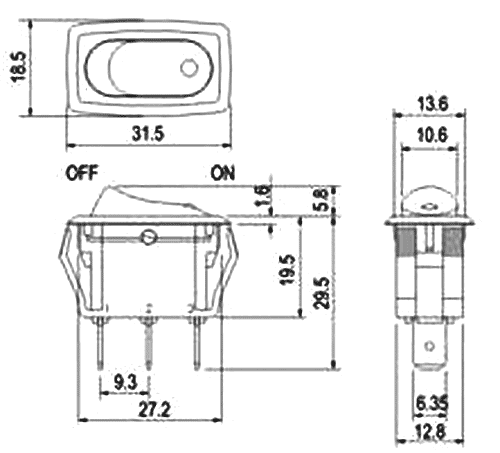

Dimensions	VIEW

Availability: On stock
