Διακόπτης - Switch toggle, Pos 3, SP3T, ON-OFF-(ON), 3A/250VAC, -25....85°C, 20mΩ	Prod code: 37656
PDF	TSM113F1

Click to enlarge Switch toggle, Pos 3, SP3T, ON-OFF-(ON), 3A/250VAC, -25....85°C, 20mΩ

Switch toggle, Pos 3, SP3T, ON-OFF-(ON), 3A/250VAC, -25....85°C, 20mΩ

Price:	1.18 €
VAT:	0.28 €
Final price with tax:	1.46 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Type of switch	toggle
Number of positions	3
Contacts configuration	SP3T
Switching method	ON-OFF-(ON)
AC contacts rating @R	3A / 250V AC
Leads	for soldering
Operating temperature	-25...85°C
Kind of toggle	flat
Mounting hole diameter	Ø6mm
Knob height	12mm
Max. contact resistance:	20mΩ
Body dimensions	13.2x7.9x9.5mm
Electrical life	20000 cycles
Actuator material	metal
Body colour	black
Soldering temperature	260°C / 4 s
Stable positions number	2
Panel cutout	VIEW

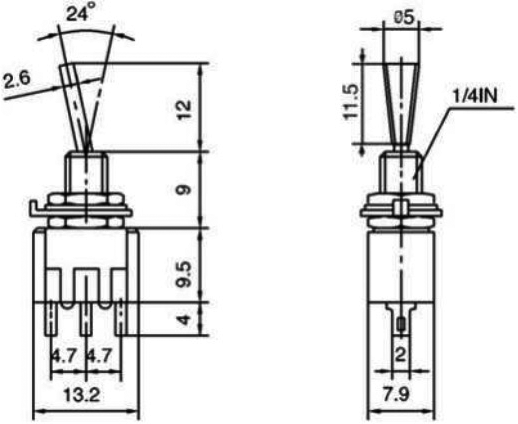

Dimensions	VIEW
Gross weight	5.37 g

Availability: On stock
