Timers - Timer, 0,05s÷100h, DPDT, 250VAC/10A, Usup 230VAC, 230VDC, 85, PIN 8	Prod code: 42348
PDF PDF	85.02-230

Click to enlarge Timer, 0,05s÷100h, DPDT, 250VAC/10A, Usup 230VAC, 230VDC, 85, PIN 8

Timer, 0,05s÷100h, DPDT, 250VAC/10A, Usup 230VAC, 230VDC, 85, PIN 8

Price:	50.33 €
VAT:	12.08 €
Final price with tax:	62.41 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	FINDER
Type of module	timer
Counting range	0,05s...100h
Kind of output	DPDT
Output 1 electrical parameters	250V AC / 10A
Manufacturer series	85
Number of operation modes	4
Operating temperature	-20...60°C
Number of pins	8
IP rating	IP40
The additional control inputs	START
Indication	LED
Counter operation modes	delayed switching on, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pulse first, with the control contact S
Mounting	for DIN rail mounting, on panel, socket
Related items	94.72, 94.72.0, 94.74, 94.82, 94.84.2, 94.84.20, 94.92.3, 94.92.30, 94.02, 94.02.0, 94.P4

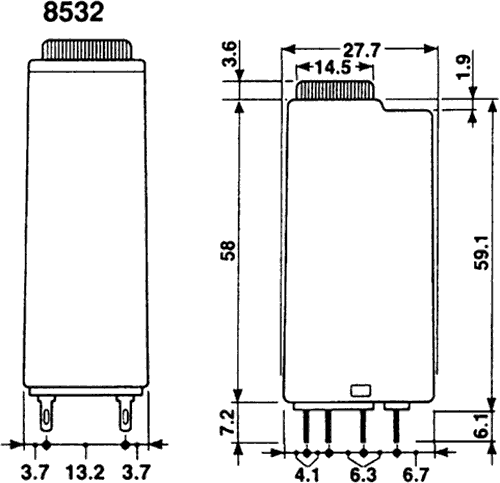

Dimensions	VIEW
Output configuration	VIEW

Availability: With order
