Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 0.5A/125VAC, 1A/30VDC

Prod code: 39642
HFD23/012-1ZP PDF

HFD23/012-1ZP
Price:  1.09 €
VAT:  0.26 €
Final price with tax:  1.35 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 0.5A / 125V AC
DC contacts rating @R 1A / 30V DC
Contact current max. 2A
Switched voltage max. 60V DC,   max. 125V AC
Relay variant signal,   subminiature
Mounting PCB
Coil resistance 720Ω
Coil voltage min. 9.6V DC
Coil voltage max. 18V DC
Operate time 5ms
Body dimensions 12.5x7.5x10mm
Release time 5ms
Coil power consumption 200mW
Operating temperature -30...70°C
Contact resistance 100mΩ
Contact material AgNi + Au
Terminal pitch 2.54mm

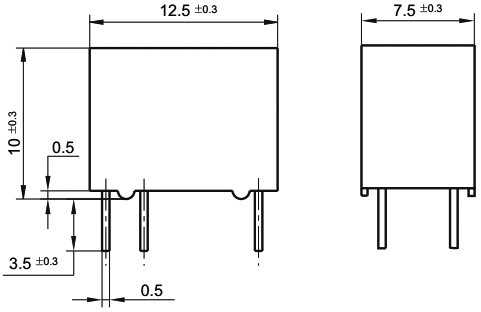

Dimensions  VIEW

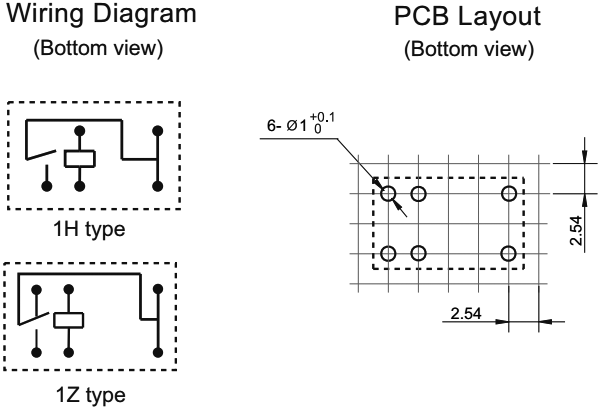

Output configuration  VIEW
Gross weight 2.735 g

Availability: With order
