Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 10A/250VAC, 15A

Prod code: 37007
HF3FD/012-HTF PDF

HF3FD/012-HTF
Price:  1.32 €
VAT:  0.32 €
Final price with tax:  1.64 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 10A / 250V AC
DC contacts rating @R 10A / 28V DC
Contact current max. 15A
Switched voltage max. 30V DC,   max. 277V AC
Relay variant subminiature
Mounting PCB
Coil resistance 400Ω
Coil voltage min. 9V DC
Coil voltage max. 15.6V DC
Operate time 10ms
Body dimensions 19x15.5x15.2mm
Release time 5ms
Coil power consumption 360mW
Operating temperature -40...105°C
Contact resistance 100mΩ
Contact material AgSnO2

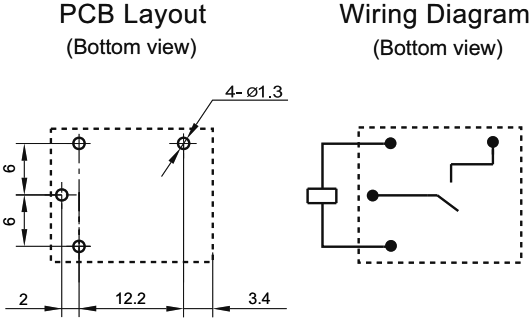

Dimensions  VIEW
Output configuration  VIEW
Gross weight 8.1 g

Availability: On stock
