Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 30A, Series R30N

Prod code: 38002
R30N3021851012 PDF

R30N3021851012
Price:  3.40 €
VAT:  0.82 €
Final price with tax:  4.21 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Contact current max. 30A
Relay series R30N
Relay variant power
Operating temperature -55...100°C
Mounting PCB
Coil resistance 160Ω
Body dimensions 32.5x27.6x20.5mm
Switched voltage max. 110V DC,   max. 300V AC
Coil power consumption 0.9W
AC contacts rating @R 30A / 240V AC
Contact resistance 30mΩ
DC contacts rating @R 30A / 14V DC
Operate time 15ms
Release time 10ms
Contact material AgSnO2
Mechanical durability 100000000 cycles
Electrical life 1000000 cycles
IP rating IP64
OEM number 2614763

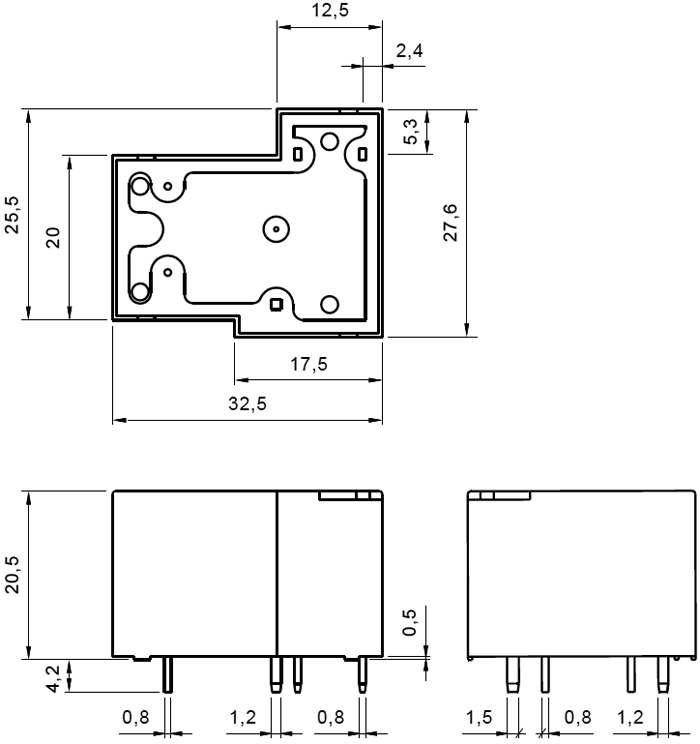

Dimensions  VIEW

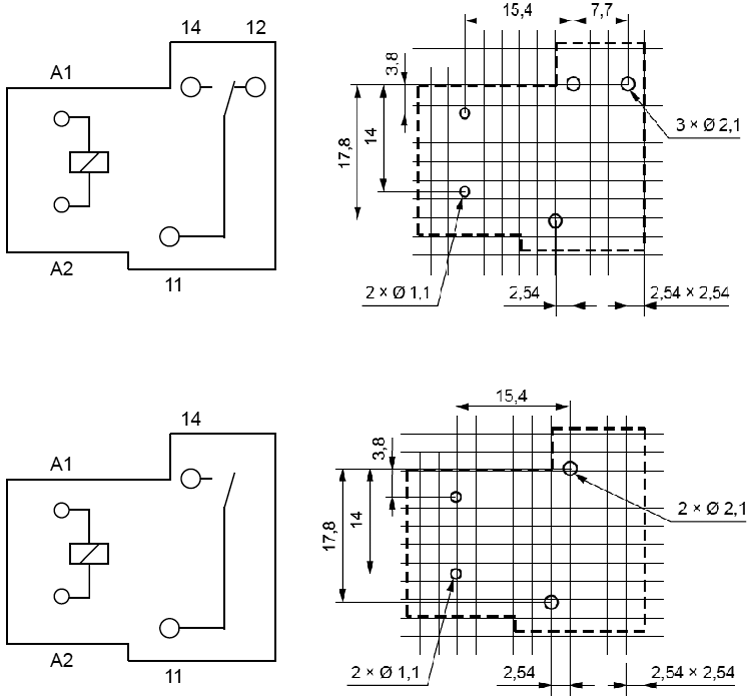

Leads  VIEW
Gross weight 25.83 g

Availability: On stock
